Air Conveyer System Ring-Vac™
AIR CONVEYOR FEATURES
The Ring-Vac™ Air Conveying System is made of an anodized aluminum body with no moving parts. Stainless steel models are available for high temperature and corrosive applications.

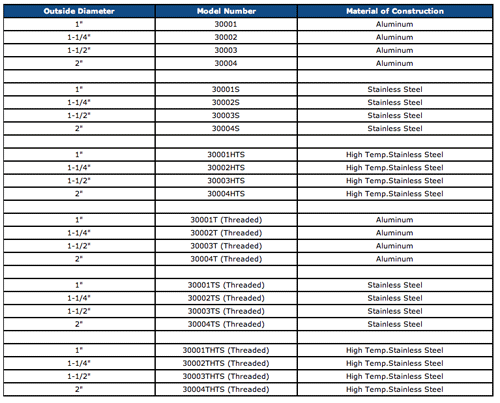

Standard sizes to fit standard hose diameter for easy clamping. Threaded versions connect easily to regular pipe thread: 1", 1.25", 1.5" and 2". Special sizes can be manufactured if required.
Utilizing a pressure regulator will control the flow material.
Instant ON/OFF with no moving parts, no electricity or explosion hazard.
Air Conveyer System Ring-Vac™
AIR CONVEYOR BENEFITS
• Longer life in difficult environments than competitive models.
• Ease of use.
• Simple and easy control of material flow.
• Maintenance free operation.
Typical Air Conveyer System applications replace expensive, high maintenance blower systems and are particularly advantageous in intermittent applications.
Air Conveyer System Ring-Vac™
AIR CONVEYOR APPLICATIONS
Automotive:
Convey all sorts of items from ball bearings, screws, metal and plastic parts from machinery, moulding machines in manufacturing and in assembly operations.
Bottling:
Loading and conveying caps in bottle filling lines.
Food:
Convey caps, small items including food items from cheese bits to dried food. Fill or empty packaging material in shipping.
General Manufacturing:
Convey all sorts of items from ball bearings, screws, metal and plastic parts. Replace costly blower systems, especially in intermittent applications.
Paper:
Remove dust and waste from paper tubes.
Plastic:
Remove water and dirt from plastic tubing, foam, or rod.
Printing:
Helps “set” ink that is applied to extruded shapes from hot wheels, ink jet or screen printing.
Textile:
Cleaning and drying of rope.
|
